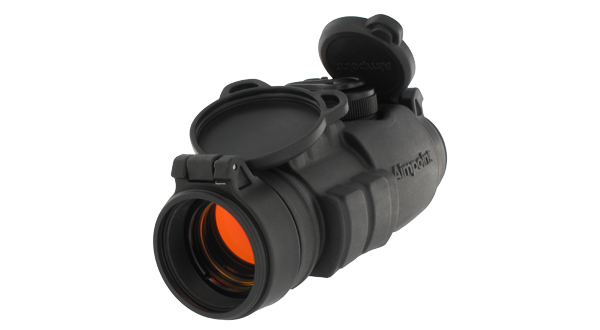

CompM3

CompM3
COMP_M3_LOW_ENFORCEMENT-large



Λεπτομέρειες

Article number11403 (CompM3 4MOA)11408 (CompM3 2MOA)
TechnologyACET (Advanced Circuit Efficiency Technology)
Working principleReflex collimator sight – red dot sight
OPTICAL DATA
LightsourceLED (Light Emitting Diode) totally eye-safe
Lightsource wavelength650 nm red light
Red dot size in MOA (minute of angle)*4 or 2
ParallaxAbsence of parallax -No centering required
Eye reliefUnlimited
Night vision compatibilityYes
Anti-reflex coating all surfaces & multi-layer coating objective lensYes
MagnificationNo magnification (1X)
ELECTRONIC DATA
BatteryOne 3V Lithium battery, type 2L76 or DL1/3N
Battery life in hours **50 000 (over 5 years of continuous use)
Battery life in hours **at NVD settings ***500 000
Dot intensity adjustmentManual rotary switch
Daylight (DL) settings6 DL of which one extra bright
NVD settings4 NVD
MECHANICAL DATA
Material housingExtruded high strength aluminum
Surface finishHard anodized, matte
Color housingBlack
Adjustment 1 click13mm at 100m, (1/2” at 100yds)
Mounting methods1 ring, ø 30mm, (1.18”)
ENVIROMENTAL DATA
Temperature range-45° – +71° C, (50°- +160° F)
Water resistance – submersible to45m, (150ft)
Radioactive components usedNone
DIMENSIONS
Length130mm, (5.1”)
Width/height sight only55 x 55mm, (2.2” x 2.2”)
Maximum ring width30mm, (1.18”)
Objective diameter38mm, (1.5”)
Tube diameter30mm, (1.18”)
Weight sight only220g, (7.8oz)****
Weight rubber cover50g, (1.7oz)
* 1 MOA ˜ 30 mm at 100 meters ˜ 1” at 100 yards.

** at room temperature & at setting 7 out of 10.

*** Night Vision Device.

**** Dimensions and weight for CompM2, ML2, M3, ML3 are given with flip-up lens covers.
